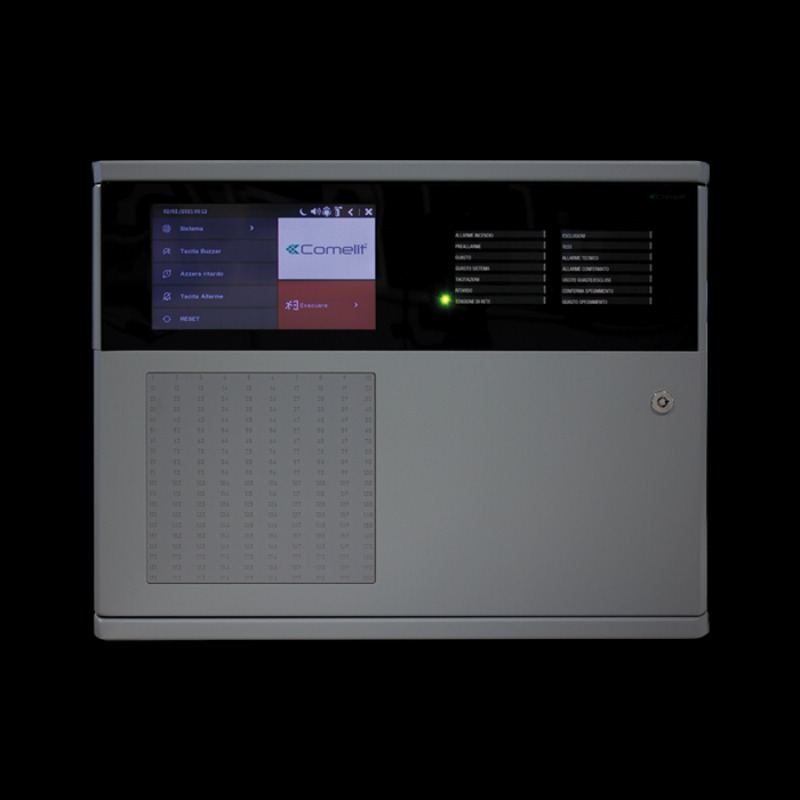

1/8 Loop Addressable Fire Panel Logifire
LOGIFIRE 41CPE118 addressable fire panel supports 1-8 loops , features a 7-inch touchscreen , redundant CPU , and manages 200 zones for premium safety.
1. System & Expandability
- Number of Loops: 1 standard, expandable to 4 (via 3x 41ECL120 boards), and up to 8 loops with cabinet 41CPE104.
- Max Devices: Up to 250 addressed devices per loop.
- Zones: Up to 200 detection zones.
- Networking: Supports up to 64 control panels via Ethernet (TCP/IP) or redundant RS485 network.
- Event Log: Stores up to 10,240 events.
2. Hardware Features
- Display: 7" color resistive touchscreen.
- Microprocessor: Dual redundant CPU for high reliability.
- Enclosure: Metallic case, Grey (RAL 7045), dimensions 430 x 330 x 150 mm.
- Protection Rating: IP30.
- Weight: 7000g (without batteries).
3. Electrical & Connectivity
- Main Power Supply: 110-230 VAC / 50-60Hz.
- Backup Battery: 1 x 12 VDC - 18 Ah (not supplied).
- Relay Outputs: 4 programmable volt-free contact outputs (NO/NC, 30V / 10A).
- Siren Outputs: 1 monitored output (24VDC @ 1A).
- Programming Ports: Micro USB-B and LAN (RJ45).
Red 1/8 Loop Addressable Fire Alarm Panel
The LOGIFIRE 41CPE118R addressable fire panel features 1-8 loops , a 7-inch touchscreen , and 200 zones , providing premium safety for any building.

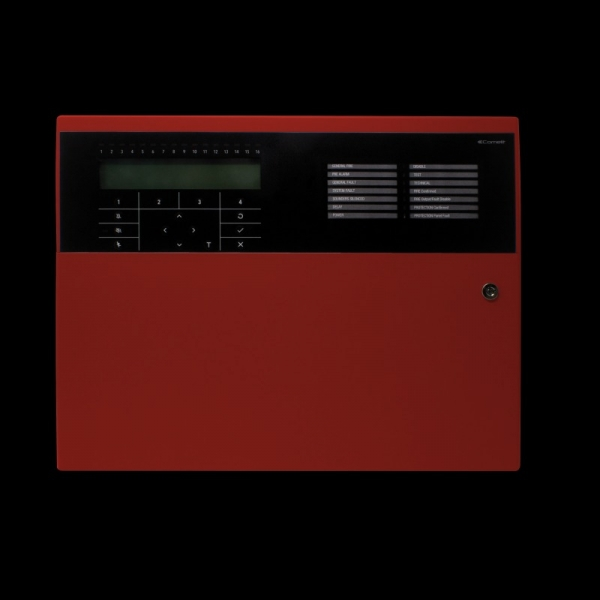

Addressable Panel 1/2 Loop, Red
41CPE112R is a red Logifire addressable fire panel supporting 1-2 loops, up to 500 devices, EN54 certified with a durable metallic enclosure.

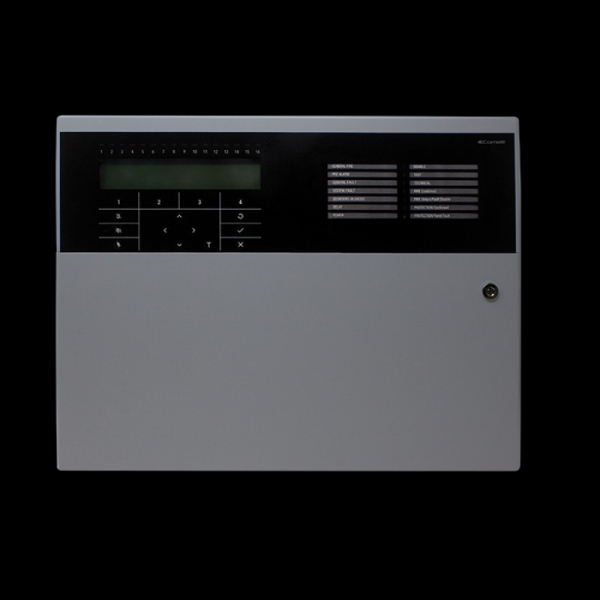

Logifire Easy 1/2 Loop Addressable Fire Panel
Logifire Easy addressable fire panel features a durable metal case , supporting 2 loops , 500 devices , and 10,000 event logs , EN54 certified.
