Benka Shielded Data Cable (522)
This cable supports security, audio, BMS and fire alarm systems, usable in dry or humid areas, with twisted pairs and foil shielding to reduce interference.

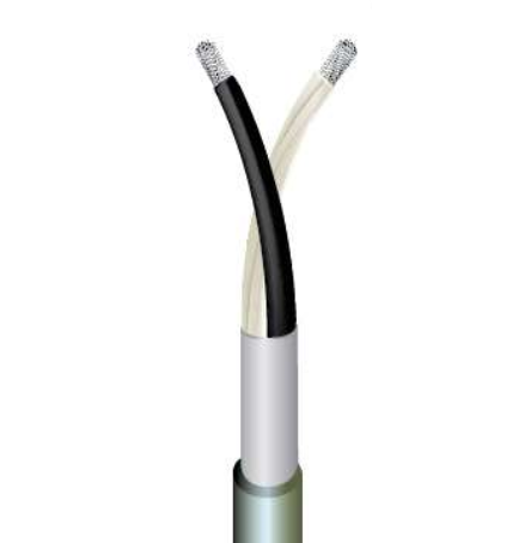

Construction
| Component | Technical Detail |
|---|---|
| Conductor | Flexible class 5 stranded bare copper conductor |
| Insulation | Polyethylene (PE) compound, twisted in pair |
| Overall screen | Aluminium foil screen |
| Outer sheath | PVC/LSZH. Color: Grey/Orange/Black |
Technical Data
| Specification | Value/Condition |
|---|---|
| Rated voltage |
300/500V – Control & instrumentation applications (Optional: 600/1000V) 30V – Analog/digital transmission |
| Test voltage | 1500V |
| Rated temperature | -30°C to +70°C |
| Conductor resistance (max) @20°C (Ω/km) |
According to IEC 60228 0.5 mm2: 39; 0.75 mm2: 26; 1.0 mm2: 19.5; 1.5 mm2: 13.3; 2.0 mm2: 10.6; 2.5 mm2: 8.1;... |
| Insulation resistance | > 2 GΩ x km |
| Impedance | 65 to 120 Ω |
| Recommended current (max) @25°C (Amps) | 0.5 mm2: 3.2; 0.75 mm2: 6.3; 1.0 mm2: 10.5; 1.5 mm2: 14.5; 2.0 mm2: 17.5; 2.5 mm2: 20.8;... |
| Smoke density | IEC 61034-2 (LSZH sheath) |
| Halogen free | IEC 60754-1 (LSZH sheath) |
| Flame retardant | IEC 60332-1 |
| Standard & Approval | ROHS |
| Minimum bending radius | 8 x OD (static) |
