Home/Product/Benka/Copper cable accessories

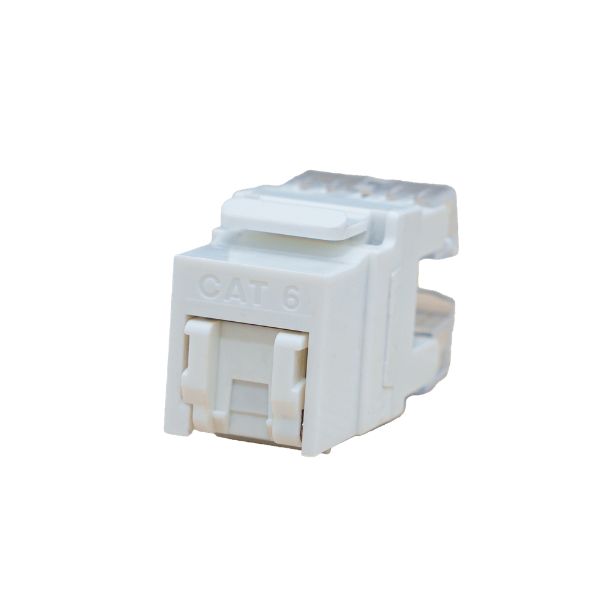

Benka Modular Jack Cat 6 UTP

Price:

Contact

BENKA Cat6 UTP modular jacks provide reliable, fast termination and support keystone systems plus Ethernet, ATM, token ring, digital video, VoIP, PoE, TP-PMD and ISDN.

Contact for consultation

Product information
Documents/Download

Technical Data

General Specification	Value/Condition
Cable Type	U/UTP
Color	White
Package Quantity	1
Packaging Type	Bag
Type	Keystone, Toolless
Standards	ANSI/TIA-568-C.2, ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173-1, RoHS

Mechanical Specification	Value/Condition
Conductor termination range	22 AWG - 26 AWG
Conductor type	Solid or Stranded
Operating Temperature	-20°C to +60°C
Termination Type	IDC Wiring T568A \| T568B
Jack Termination Durability	> 1000 times
IDC Termination Durability	> 250 times
Dust Cover	Option

Electrical Specification	Value/Condition
Contact Resistance	20 mΩ
Current Rating	1,5 Amps
DC Resistance	Max. 0,1Ω
Dust Cover	Auto shutter
