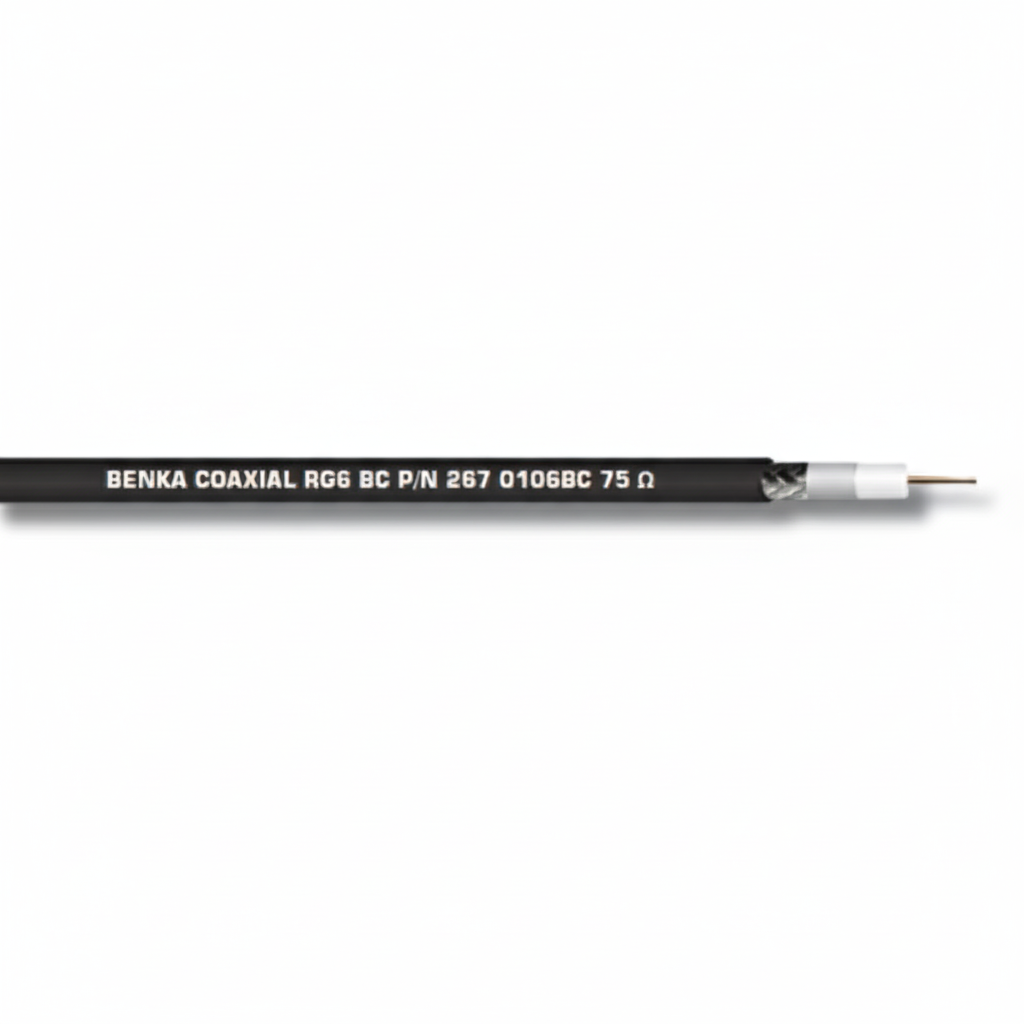

RG - BC - Coaxial Cable
Giá:
Liên hệ
BENKA coaxial cable with 100% copper and 95% braiding provides low-attenuation CCTV and satellite transmission, suitable for both indoor and outdoor use.
Cable Description
| BENKA RG11 | BENKA RG6 | BENKA RG59 | ||
|---|---|---|---|---|
| Part No. | PVC jacket | 267 0111BC | 267 0106BC | 267 0159BC |
| Conductor | Diameter (mm) | 1.65 ± 0.02 | 1.02 ± 0.02 | 0.81 ± 0.02 |
| Material | Bare copper | Bare copper | Bare copper | |
| Type | Solid | Solid | Solid | |
| Dielectric | Diameter (mm) | 7.15 ± 0.05 | 4.60 ± 0.05 | 3.70 ± 0.05 |
| Material | Gas expanded PE | Gas expanded PE | Gas expanded PE | |
| Screen | Material | Bonded AL/PET/AL foil + aluminium braid | Bonded AL/PET/AL foil + aluminium braid | Bonded AL/PET/AL foil + aluminium braid |
| Screen coverage (Alminium foil) | ≥ 100% | ≥ 100% | ≥ 100% | |
| Screen coverage(Copper wire braid) | ≥ 95% | ≥ 95% | ≥ 95% | |
| Outer sheath | Thickness (mm) | ≥ 1.07 | ≥ 0.80 | ≥ 0.80 |
| Diameter (mm) | 10.2 ± 0.2 | 7.1 ± 0.2 | 6.0 ± 0.2 | |
| Material | PVC | PVC | PVC | |
| Color | Black/Orange | Black/Orange | Black/Orange | |
| Attenuation (dB/100m) | 5MHz | ≤ 1.25 | ≤ 2.12 | ≤ 2.82 |
| 55MHz | ≤ 3.15 | ≤ 5.25 | ≤ 6.73 | |
| 83MHz | ≤ 3.87 | ≤ 6.40 | ≤ 8.20 | |
| 187MHz | ≤ 5.74 | ≤ 9.35 | ≤ 11.80 | |
| 211MHz | ≤ 6.23 | ≤ 10.00 | ≤ 12.47 | |
| 250MHz | ≤ 6.72 | ≤ 10.82 | ≤ 13.45 | |
| 300MHz | ≤ 7.38 | ≤ 11.25 | ≤ 14.60 | |
| 350MHz | ≤ 7.94 | ≤ 12.00 | ≤ 15.75 | |
| 400MHz | ≤ 8.53 | ≤ 13.12 | ≤ 16.73 | |
| 450MHz | ≤ 9.02 | ≤ 14.04 | ≤ 17.72 | |
| 500MHz | ≤ 9.51 | ≤ 14.80 | ≤ 18.70 | |
| 550MHz | ≤ 9.97 | ≤ 15.62 | ≤ 19.52 | |
| 600MHz | ≤ 10.43 | ≤ 16.34 | ≤ 20.34 | |
| 750MHz | ≤ 11.97 | ≤ 18.54 | ≤ 22.87 | |
| 865MHz | ≤ 13.05 | ≤ 19.99 | ≤ 24.67 | |
| 1000MHz | ≤ 14.27 | ≤ 21.46 | ≤ 26.64 | |
| Capacitance (pF/m) | 52 ± 2 | 52 ± 2 | 52 ± 2 | |
| Return loss (dB) | 5-300MHz | ≥ 22 | ≥ 22 | ≥ 22 |
| ≥ 300MHz | ≥ 20 | ≥ 20 | ≥ 20 | |
| Impedance (Ω) | 75 ± 3 | 75 ± 3 | 75 ± 3 | |
| Rated temperature | -20°C to +70°C | |||
| Smoke density | IEC 61034-2 (LSZH sheath) | |||
| Halogen free | IEC 60754-1 (LSZH sheath) | |||
| Flame retardant | IEC 60332-1, UL1685 | |||
| Standard & Approval | RoHS, SIRIM, SCTE | |||
